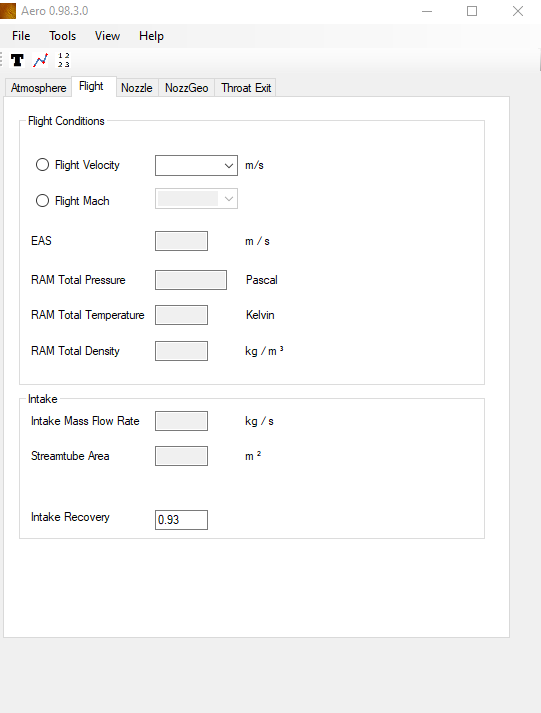

Tab 2 - Flight

Click the Flight Velocity Radio button and enter a flight velocity into the text box

Or if it is desired to enter a Flight Mach number then click the corresponding radio button and enter a Mach number
This value is limited to a value set within the Tools - Contants - General tab. By default this is set to 100


An Equivalent Airspeed is calculated automatically along with the Free Stream Stagnation conditions.
The static conditions are picked up from the values calculated previously from the Atmosphere tab, within the Altitude pane.


The RAM conditions are calculated using the Isentropic relations, giving a ratio of free stream stagnation pressure to static pressure from the Mach number and Gamma
